MVC Charts: How to create charts using MVC

mvc charts asp net, mvc charts and graphs, mvc charts, mvc charts database, Creating a Chart from Data in MVC, Chart Helper in MVC, how to create charts using MVC

Introduction

Already explained how to send SMS using C# in my previous article, here explaining about MVC Charts. Chart Helper is an outstanding option to show your data in graphical representation. The Chart Helper shows data in image in different chart types like Funnel, Bar Chart, Pie, Column, Candlestick, Doughnut, StackedBar100, BoxPlot, Pyramid, Polar, Radar, RangeBar etc. Chart Helper can show more than 30 chart types in MVC C#. Here, I are explaining main properties of Charts like Height, Weight, Title, Series and then finally write charts into output bmp file. In this sample, I will show how to create charts using MVC.

Database Script

CREATE TABLE [dbo].[tblMVCCharts](
 [ChartID] [int] IDENTITY(1,1) NOT NULL,
 [Growth_Year] [int] NULL,
 [Growth_Value] [float] NULL
) ON [PRIMARY]


insert into [dbo].[tblMVCCharts] (Growth_Year, Growth_Value) values (2008,50)
insert into [dbo].[tblMVCCharts] (Growth_Year, Growth_Value) values (2009,70)
insert into [dbo].[tblMVCCharts] (Growth_Year, Growth_Value) values (2010,80)
insert into [dbo].[tblMVCCharts] (Growth_Year, Growth_Value) values (2011,90)
insert into [dbo].[tblMVCCharts] (Growth_Year, Growth_Value) values (2012,120)
insert into [dbo].[tblMVCCharts] (Growth_Year, Growth_Value) values (2013,150)
insert into [dbo].[tblMVCCharts] (Growth_Year, Growth_Value) values (2014,100)
insert into [dbo].[tblMVCCharts] (Growth_Year, Growth_Value) values (2015,300)

Namespace

using System.Web.Helpers;

Height-Weight

We can increase-decrease chart height and weight as per your customisation requirements

Title

Here we can put title of the chart.

Series

In series property, Series is very required property to provide data (X & Y series) to generate into graphical form. We need to provide data for X (Horizontal) and Y (Vertical) series to show data in graphical representation, that is what we need to extract from our data into chart in MVC.

Write

Write properties is finally convert our data into image form to output in to BMP file.
Every chart necessarily requires values for x and y for similar collection of information. Here are showing growth overs years values for X and Y.

Controller Action Column Chart

public ActionResult CharterColumn()
{
    var _context = new TestEntities();

    ArrayList xValue = new ArrayList();
    ArrayList yValue = new ArrayList();

    var results = (from c in _context.tblMVCCharts select c);

    results.ToList().ForEach(rs => xValue.Add(rs.Growth_Year));
    results.ToList().ForEach(rs => yValue.Add(rs.Growth_Value));

    new Chart(width: 600, height: 400, theme: ChartTheme.Vanilla3D)
    .AddTitle("Chart for Growth [Column Chart]")
   .AddSeries("Default", chartType: "column", xValue: xValue, yValues: yValue)
          .Write("bmp");

    return null;
}

Razor View Column Chart

<img src="@Url.Action("CharterColumn")" alt="Chart" />

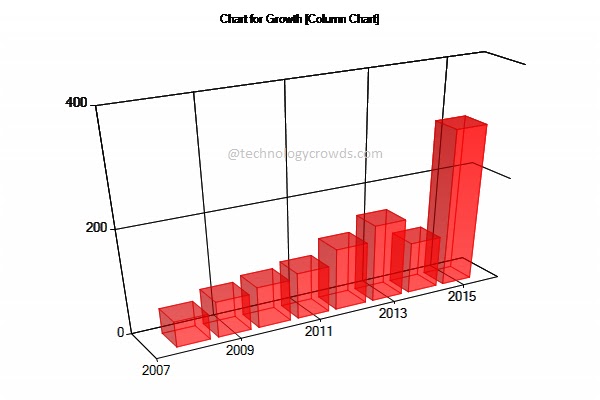

Column Chart Output

Column Chart

Controller Action Bar Chart

public ActionResult ChartBar()
{
    var _context = new TestEntities();

    ArrayList xValue = new ArrayList();
    ArrayList yValue = new ArrayList();

    var results = (from c in _context.tblMVCCharts select c);

    results.ToList().ForEach(rs => xValue.Add(rs.Growth_Year));
    results.ToList().ForEach(rs => yValue.Add(rs.Growth_Value));

    new Chart(width: 600, height: 400, theme: ChartTheme.Vanilla3D)
    .AddTitle("Chart for Growth [Bar Chart]")
            .AddSeries("Default", chartType: "Bar", xValue: xValue, yValues: yValue)
            .Write("bmp");

    return null;
}

Razor View Bar Chart

<img src="@Url.Action("ChartBar")" alt="Chart" />

Bar Chart Output

Bar Chart

Controller Action Pie Chart

public ActionResult ChartPie()
{
    var _context = new TestEntities();

    ArrayList xValue = new ArrayList();
    ArrayList yValue = new ArrayList();

    var results = (from c in _context.tblMVCCharts select c);

    results.ToList().ForEach(rs => xValue.Add(rs.Growth_Year));
    results.ToList().ForEach(rs => yValue.Add(rs.Growth_Value));

    new Chart(width: 600, height: 400, theme: ChartTheme.Vanilla3D)
    .AddTitle("Chart for Growth [Pie Chart]")
            .AddLegend("Summary")
            .AddSeries("Default", chartType: "Pie", xValue: xValue, yValues: yValue)
            .Write("bmp");

    return null;
}

Razor View Pie Chart

<img src="@Url.Action("ChartPie")" alt="Chart" />

Pie Chart Output

Pie Chart

Controller Action Three Line Break Chart

public ActionResult ChartThreelinebreak()
{
    var _context = new TestEntities();

    ArrayList xValue = new ArrayList();
    ArrayList yValue = new ArrayList();

    var results = (from c in _context.tblMVCCharts select c);

    results.ToList().ForEach(rs => xValue.Add(rs.Growth_Year));
    results.ToList().ForEach(rs => yValue.Add(rs.Growth_Value));

    /// SeriesChartType.Candlestick
    new Chart(width: 600, height: 400, theme: ChartTheme.Vanilla3D)
    .AddTitle("Chart for Growth [Three Line Break Chart]")
            .AddSeries("Default", chartType: "Candlestick", xValue: xValue, yValues: yValue)
            .Write("bmp");

    return null;
}

Razor View Three Line Break Chart

<img src="@Url.Action("ChartThreelinebreak")" alt="Chart" />

Three Line Break Chart Output

Three Line Break Chart

Controller Action Bubble Chart

public ActionResult Bubblebreak()
{
    var _context = new TestEntities();

    ArrayList xValue = new ArrayList();
    ArrayList yValue = new ArrayList();

    var results = (from c in _context.tblMVCCharts select c);

    results.ToList().ForEach(rs => xValue.Add(rs.Growth_Year));
    results.ToList().ForEach(rs => yValue.Add(rs.Growth_Value));

    new Chart(width: 600, height: 400, theme: ChartTheme.Green)

    /// SeriesChartType.Bubble
    .AddTitle("Chart for Growth [Bubble Chart]")
            .AddLegend("Summary")
            .AddSeries("Default", chartType: "Bubble", xValue: xValue, yValues: yValue)
            .Write("bmp");

    return null;
}

Razor View Bubble Chart

<img src="@Url.Action("Bubblebreak")" alt="Chart" />

Bubble Chart Output

Bubble Chart

Controller Action Doughnut Chart

public ActionResult DoughnutGraph()
{
    var _context = new TestEntities();

    ArrayList xValue = new ArrayList();
    ArrayList yValue = new ArrayList();

    var results = (from c in _context.tblMVCCharts select c);

    results.ToList().ForEach(rs => xValue.Add(rs.Growth_Year));
    results.ToList().ForEach(rs => yValue.Add(rs.Growth_Value));

    new Chart(width: 600, height: 400, theme: ChartTheme.Green)

    /// SeriesChartType.Doughnut
    .AddTitle("Chart for Growth [Doughnut Chart]")
            .AddLegend("Summary")
            .AddSeries("Default", chartType: "Doughnut", xValue: xValue, yValues: yValue)
            .Write("bmp");

    return null;
}

Razor View Doughnut Chart

<img src="@Url.Action("DoughnutGraph")" alt="Chart" />

Doughnut Chart Output

Doughnut Chart

Controller Action StackedBar100 Chart

public ActionResult ChartStackedBar100()
{
    var _context = new TestEntities();

    ArrayList xValue = new ArrayList();
    ArrayList yValue = new ArrayList();

    var results = (from c in _context.tblMVCCharts select c);

    results.ToList().ForEach(rs => xValue.Add(rs.Growth_Year));
    results.ToList().ForEach(rs => yValue.Add(rs.Growth_Value));

    new Chart(width: 600, height: 400, theme: ChartTheme.Green)

    /// SeriesChartType.StackedBar100
    .AddTitle("Chart for Growth [StackedBar100 Chart]")
            .AddSeries("Default", chartType: "StackedBar100", xValue: xValue, yValues: yValue)
            .Write("bmp");

    return null;
}

Razor View StackedBar100 Chart

<img src="@Url.Action("ChartStackedBar100")" alt="Chart" />

StackedBar100 Chart Output

StackedBar100 Chart

Controller Action BoxPlot Chart


public ActionResult ChartBoxPlot()
{
    var _context = new TestEntities();

    ArrayList xValue = new ArrayList();
    ArrayList yValue = new ArrayList();

    var results = (from c in _context.tblMVCCharts select c);

    results.ToList().ForEach(rs => xValue.Add(rs.Growth_Year));
    results.ToList().ForEach(rs => yValue.Add(rs.Growth_Value));

    new Chart(width: 600, height: 400, theme: ChartTheme.Green)

    /// SeriesChartType.BoxPlot
    .AddTitle("Chart for Growth [BoxPlot Chart]")
            .AddSeries("Default", chartType: "BoxPlot", xValue: xValue, yValues: yValue)
            .Write("bmp");

    return null;
}

Razor View BoxPlot Chart

<img src="@Url.Action("ChartBoxPlot")" alt="Chart" />

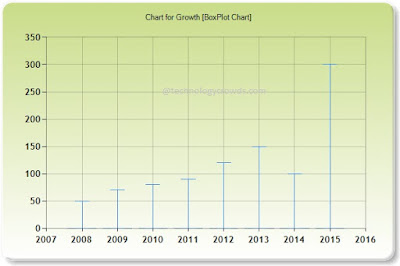

BoxPlot Chart Output

BoxPlot Chart

Controller Action Pyramid Chart


public ActionResult ChartPyramid()
{
    var _context = new TestEntities();

    ArrayList xValue = new ArrayList();
    ArrayList yValue = new ArrayList();

    var results = (from c in _context.tblMVCCharts select c);

    results.ToList().ForEach(rs => xValue.Add(rs.Growth_Year));
    results.ToList().ForEach(rs => yValue.Add(rs.Growth_Value));

    new Chart(width: 600, height: 400, theme: ChartTheme.Green)

    /// SeriesChartType.Pyramid
    .AddTitle("Chart for Growth [Pyramid Chart]")
            .AddLegend("Summary")
            .AddSeries("Default", chartType: "Pyramid", xValue: xValue, yValues: yValue)
            .Write("bmp");

    return null;
}

Razor View Polar Chart

<img src="@Url.Action("ChartPyramid")" alt="Chart" />

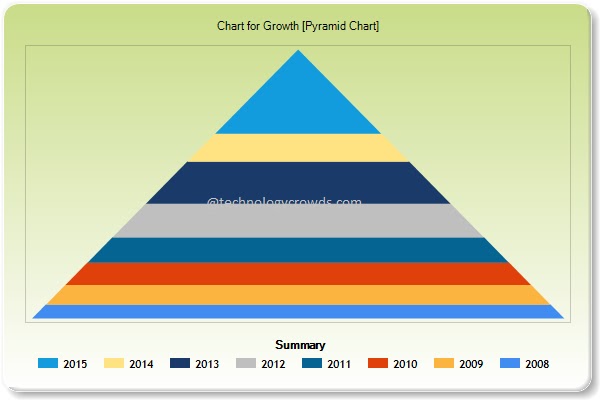

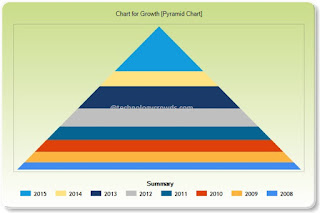

Pyramid Chart Output

ChartPyramid

Controller Action Polar Chart

public ActionResult ChartPolar()
{
    var _context = new TestEntities();

    ArrayList xValue = new ArrayList();
    ArrayList yValue = new ArrayList();

    var results = (from c in _context.tblMVCCharts select c);

    results.ToList().ForEach(rs => xValue.Add(rs.Growth_Year));
    results.ToList().ForEach(rs => yValue.Add(rs.Growth_Value));

    new Chart(width: 600, height: 400, theme: ChartTheme.Green)

    /// SeriesChartType.Polar
    .AddTitle("Chart for Growth [Polar Chart]")
            .AddSeries("Default", chartType: "Polar", xValue: xValue, yValues: yValue)
            .Write("bmp");

    return null;
}

Razor View Polar Chart

 <img src="@Url.Action("ChartPolar")" alt="Chart" />

Radar Chart Output

Polar Chart

Controller Action Radar Chart

public ActionResult RadarChart()
{
    var _context = new TestEntities();

    ArrayList xValue = new ArrayList();
    ArrayList yValue = new ArrayList();

    var results = (from c in _context.tblMVCCharts select c);

    results.ToList().ForEach(rs => xValue.Add(rs.Growth_Year));
    results.ToList().ForEach(rs => yValue.Add(rs.Growth_Value));

    new Chart(width: 600, height: 400, theme: ChartTheme.Green)

    /// SeriesChartType.Radar
    .AddTitle("Chart for Growth [Radar Chart]")
            .AddSeries("Default", chartType: "Radar", xValue: xValue, yValues: yValue)
            .Write("bmp");

    return null;
}

Razor View Radar Chart

<img src="@Url.Action("RadarChart")" alt="Chart" />

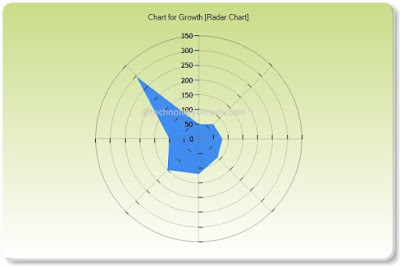

Radar Chart Output

Radar Chart

Controller Action RangeBar Chart

public ActionResult ChartRangeBar()
{
    var _context = new TestEntities();

    ArrayList xValue = new ArrayList();
    ArrayList yValue = new ArrayList();

    var results = (from c in _context.tblMVCCharts select c);

    results.ToList().ForEach(rs => xValue.Add(rs.Growth_Year));
    results.ToList().ForEach(rs => yValue.Add(rs.Growth_Value));

    new Chart(width: 600, height: 400, theme: ChartTheme.Green)

    /// SeriesChartType.RangeBar
    .AddTitle("Chart for Growth [RangeBar Chart]")
            .AddSeries("Default", chartType: "RangeBar", xValue: xValue, yValues: yValue)
            .Write("bmp");

    return null;
}

Razor View RangeBar Chart

<img src="@Url.Action("ChartRangeBar")" alt="Chart" />

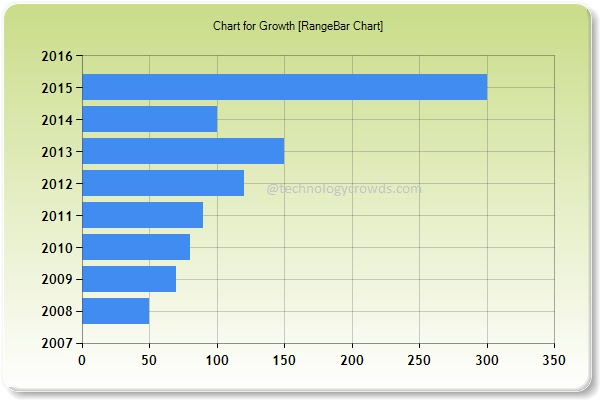

RangeBar Chart Output

RangeBar Chart

Controller Action Funnel Chart

public ActionResult ChartFunnel()
{
    var _context = new TestEntities();

    ArrayList xValue = new ArrayList();
    ArrayList yValue = new ArrayList();

    var results = (from c in _context.tblMVCCharts select c);

    results.ToList().ForEach(rs => xValue.Add(rs.Growth_Year));
    results.ToList().ForEach(rs => yValue.Add(rs.Growth_Value));

    new Chart(width: 600, height: 400, theme: ChartTheme.Green)

    /// SeriesChartType.Funnel
    .AddTitle("Chart for Growth [Funnel Chart]")
    .AddLegend("Summary")
            .AddSeries("Default", chartType: "Funnel", xValue: xValue, yValues: yValue)
            .Write("bmp");

    return null;
}

Razor View Funnel Chart

<img alt="Chart" chartfunnel="" src="@Url.Action("ChartFunnel") />

Funnel Chart Output

Funnel Chart

Conclusion

Charts help us to represent data into graphical form from tabular data. MVC charts have been provided facility to represent data into different charts. We can analyse data minutely with the help of MVC charts to take up comparative decisions. Hopefully, above all charts will help everyone to represent data in to many ways in your web app. I tried here how to create charts using MVC with detailed example and also attached a working sample with database.

Download Working Sample

Download
Note: Change Connection String in web.config before to run this working sample of MVC Charts.

Video: How to create charts using MVC

Suggested Reading

Share

Anjan kant

Outstanding journey in Microsoft Technologies (ASP.Net, C#, SQL Programming, WPF, Silverlight, WCF etc.), client side technologies AngularJS, KnockoutJS, Javascript, Ajax Calls, Json and Hybrid apps etc. I love to devote free time in writing, blogging, social networking and adventurous life

Post A Comment:

24 comments:

  1. Excellent article, you have cover overall charts in this single post. Keep Sharing

    ReplyDelete
    Replies
    1. yes, tried to cover almost all MVC charts here.

      Delete
  2. Teşekkür ederim..(Turkey).. Tanks.

    ReplyDelete
  3. how if chart plus filter, becaeuse i cannot show chart after change ActionControl ChartBar(int a)
    please help

    ReplyDelete
    Replies
    1. yes, you need to send a value (as you need a) from form razor view request so that you can filter accordingly.

      Delete
  4. How do I prevent a chart from starting at zero?

    ReplyDelete
    Replies
    1. then filter in the database table, value should be greater than zero (select * from myTable where col_1 > 0).

      Delete
    2. My query returns the values 6 thru 26 followed by 1 through 5. However the chart always starts at 1.

      Delete
    3. you need to check value before bind to chart and set value before according to your requirement.

      Delete
  5. What to do if TestEntities() is showing error

    ReplyDelete
    Replies
    1. TestEntities() is Entity framework schema, you can add your own EF schema. You can check over this site how to add entity framework objects in visual studio projects.

      Delete
  6. I need to display the values on each of the RangeBar Chart. KIndly assist

    ReplyDelete
    Replies
    1. you can download project and run on your machine, already RangeBar chart populated in sample.

      Delete
  7. Hi how can we add Links on chart as per data , so that new tab can be opened and data can be displayed

    ReplyDelete
  8. MVC Charts display charts in image.

    ReplyDelete
  9. Thanks for your sharing, Anjan Kant! But what if I wanna group the items and then compare different groups in a column-chart? How can I group that and display in a column-chart?

    ReplyDelete
    Replies
    1. You need to manage data by group (items) in x and y (year or periodic) and display accordingly.

      Delete
  10. how do i add title to x-axis and y-axis

    ReplyDelete
    Replies
    1. its like as:
      chartArea.AxisX.Title = "X Axis";
      chartArea.AxisY.Title = "Y Axis";

      Delete
  11. How do I order by descending/ascending? I want to show the ten of the most expensive equipment..

    ReplyDelete
    Replies
    1. you can do asc/desc in database and finally show graphical output.

      Delete
    2. Hi,how do I link the charts with the stored procedures?

      Delete
    3. You just need to fetch data through stored procedure ans pass data X, y axis series corresponding.

      Delete
